CHAMELEON^® PERIMETER SYSTEM

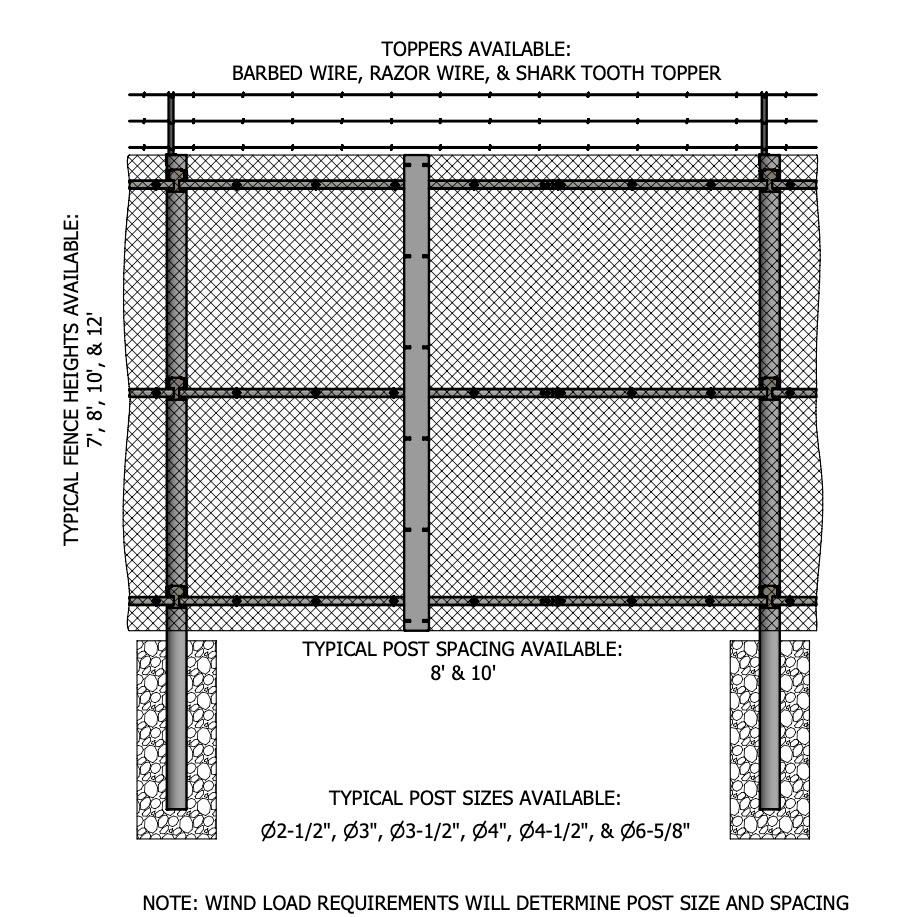

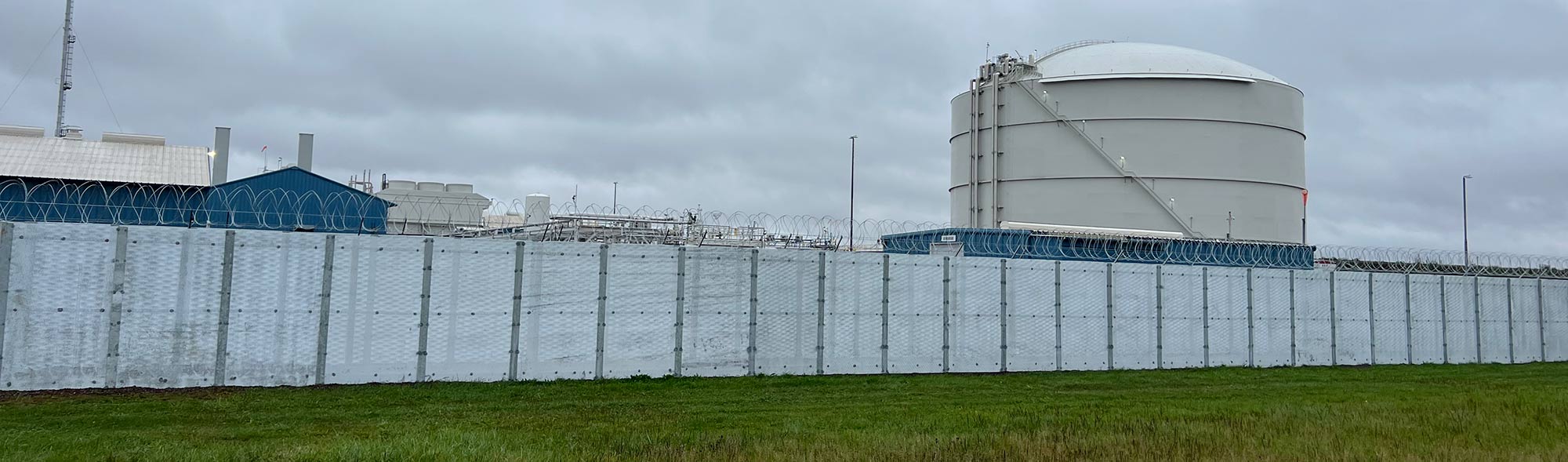

The patented Chameleon® System, U.S. Design Patent No. D996,198, allows you to upgrade an existing chain link fence to the AMIGUARD® Perimeter System utilizing existing fence posts. This allows you to upgrade to a Perimeter System with anti-cut and anti-climb capability.

The Chameleon® System is available with round posts or square posts, named Chameleon, or Chameleon2 respectively.

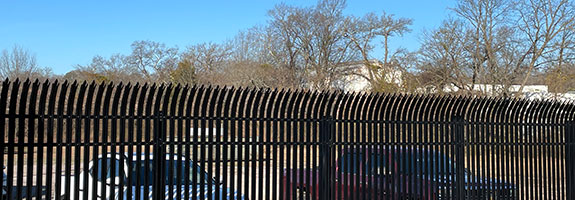

Chameleon® uses a bypass rail system which is very flexible in terms of post spacing and offers a great variety of fence infills. Infills range from expanded metal panels to welded wire panels and palisade fencing.

KEY FEATURES

Allows you to utilize existing fence posts already set in place
Saves time (up to 40% over other solutions) and materials
Allows you to utilize existing grounding systems
Can increase the security level of an existing chain link fence
Unlimited security mesh options
Available with round or square posts
Choice of finishes

CHAMELEON^® COMPONENTS

AMIGUIARD AMICLAMP^®

The patented Chameleon® System, U.S. Design Patent No. D996,198, allows you
to upgrade an existing chain link fence to the AMIGUARD® Perimeter System.

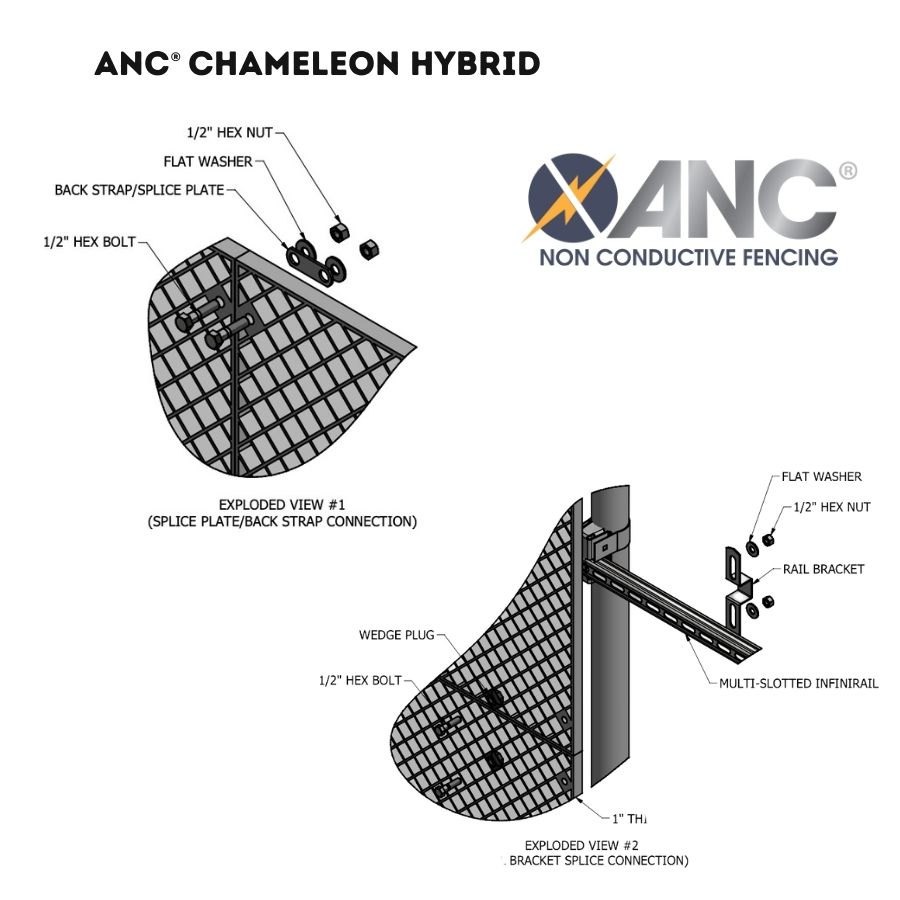

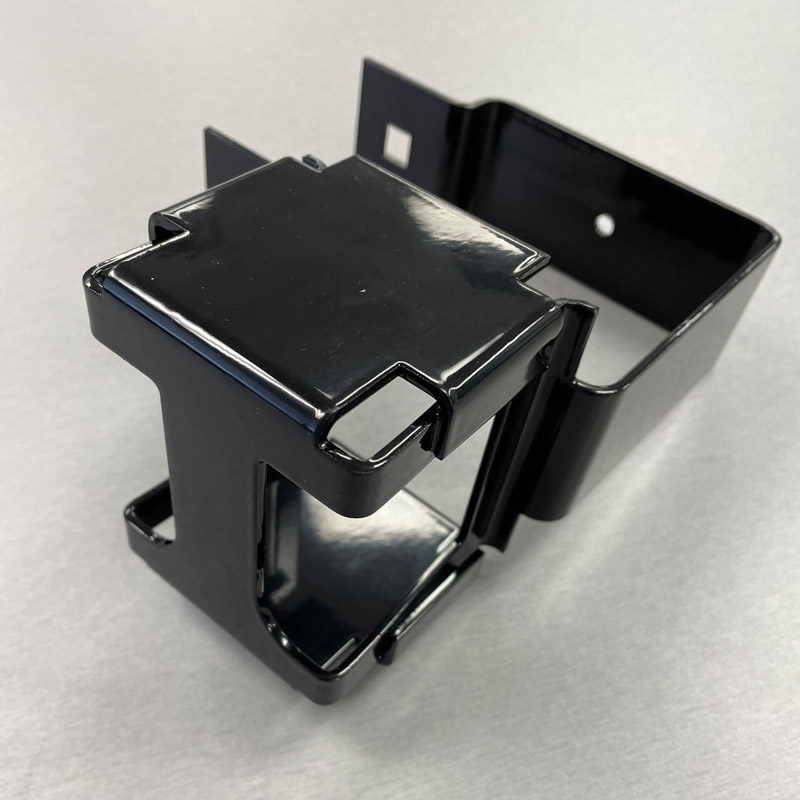

The patented AMICLAMP® design allows easy attachment to an existing post to accommodate the AMIGUARD Infini-Rail®. The Chameleon system works with various round post sizes including:

2-3/8”, 2-7/8”, 4”, and 6-5/8”.

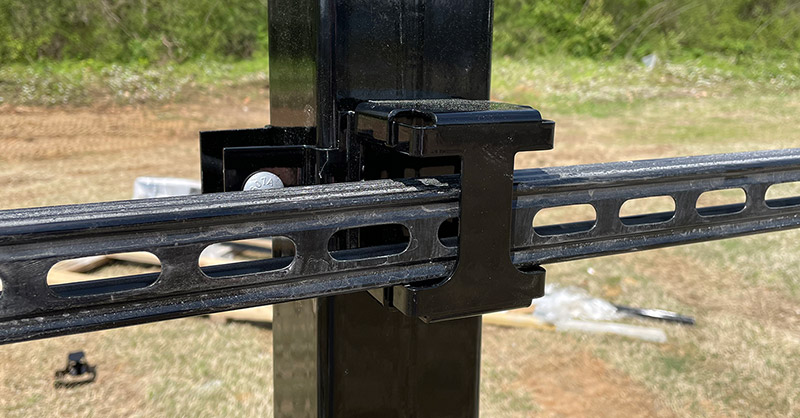

The Chameleon2 system includes square posts ranging from:

3”x3”, 4”x4”, 6”x6” to 8”x8”.

Security mesh can then be attached by utilizing AMIGUARD Diamond Fasteners®.

Our unique approach incorporates innovative solutions to solve common concerns including: security, aesthetics, seamless design, ease of installation, incorporation of impact and fiber optic cables and anti-cut / anti-climb mesh options.

INFINI-RAIL^® SYSTEM

With our continuous Infini-Rail^® system, AMICO Security’s Perimeter Systems are already at the forefront regarding ease of installation.

With the introduction of our new fastenerless friction-fit splice system, we made the installation even easier.

Compared to traditional rail fencing systems, our newly updated Infini-Rail^® system allows time saving of up to 50%.

AMIGUARD® INFILLS

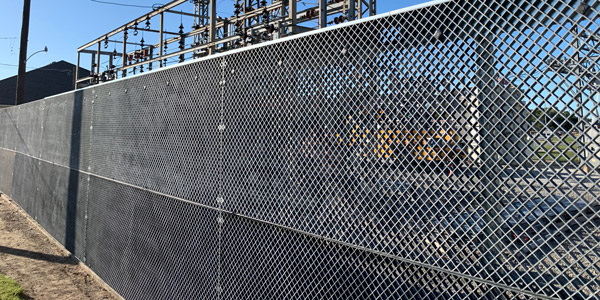

The AMIGUARD DualGuard^TM fence works with any of the AMIGUARD^® Infills like:

The infills could be identical, or chosen based on aesthetics for the attack side mesh and breach times for the secure side.

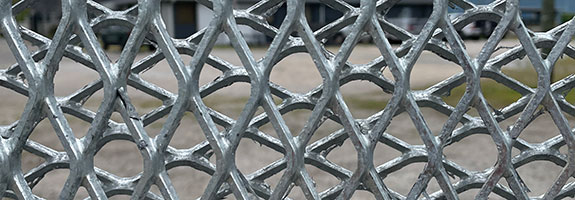

The orientation of two identical expanded metal panels is typically rotated to add extra toughness.

The two infills of the AMIGUARD DualGuard^TM design need either be different or rotated to prevent cutting both infills in the same cutting operation.

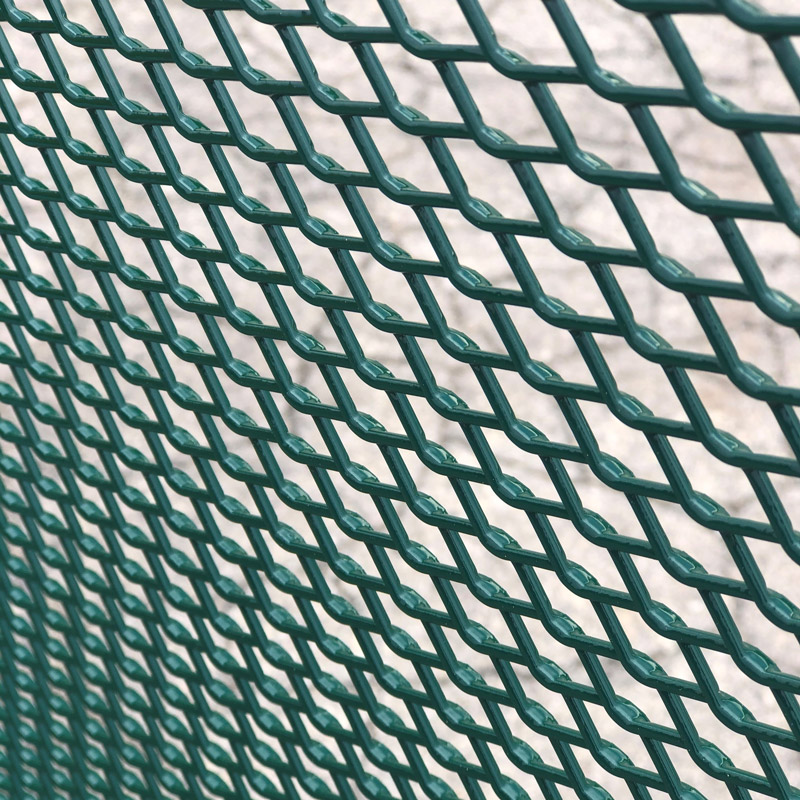

FINISHES

AMICO Security offers two highly corrosion resistant finishing options:

Hot-Dip Galvanizing
AMICOAT™ Powder coating over E-Coating or primer

All of AMICO Security’s finishing processes involve a zinc layer for superior corrosion protection. Corrosion is an electro-chemical process caused by an electrical potential between two small areas of steel, anodes and cathodes, and an electrolyte.

Additionally, The electrolyte, most often water, starts the corrosion reaction by connecting the anode and with the cathode resulting in iron oxide, which is the brown, flaky rust typically seen on unprotected steel.

While a traditional paint layer aims to prevent water from touching the steel, a zinc layer provides a superior cathodic protection replacing the steel anode with a zinc anode resulting in zinc oxide which forms a protective layer instead of rust.
