Fire axe versus AMICO’s ANC® Fencing
The ANC®
System Advantage
Total Perimeter Solution
The ANC® system was developed as a total perimeter solution to offer a safe, aesthetically pleasing, non-conductive, radar friendly alternative to traditional security fencing. ANC® non-conductive security fencing is growing rapidly in popularity and has many applications and advantages.
- Savings – can be less expensive than the overall installed cost of grounded chain link fence
- Security – M5 security rating in compliance with the ASTM standards
- ANC Security Fence can be installed to meet any layout or grade changes
- Tested to be non-conductive
- ANC Security Fence is 100% non-metallic and corrosion resistant
- ANC Security Fence has been installed up to 20ft high
- ANC Security Fence can be retrofitted to existing metallic posts
- Pedestrian and vehicle swing and slide gates
ANC Security Fence capsheets are available to deter climbing- Panels are light enough for a 2-man crew
The ANC®
Non Conductive Perimeter System
Power & Energy Sector
Secure Substations and Power Facilities
Secure substations, power facilities and energy companies throughout the world are becoming increasingly aware that ANC® non-conductive security perimeter fence is the best solution to eliminate unforeseen occurrences related to touch and step potential.
ANC® non-conductive security fence can help to ensure that the general population living around and that power employees who work around substations are safer. Dielectric tests have been conducted by a certified laboratory in which leakage current and flashover voltage tests revealed no electrical conductivity. As population centers evolve, the need for added safety and security is required.
The ANC®
Radar Friendly Perimeter System
Airports and Aviation Sector
As the need for airport security increases, AMICO® has the answer. Airports throughout the globe are searching for perimeter systems that won’t interfere with radar signals. While traditional high-security metal fencing systems reflect radar, creating false images, the ANC® non-conductive security fence significantly reduces this interference. In addition to being safe and secure, ANC® provides a clean aesthetically pleasing look that blends into the landscape.
The ANC®
Perimeter System
International Projects
ANC® has a wide variety of applications
ANC® is rapidly being utilized throughout the globe. This project in the UK is providing safety for the athletes playing adjacent to the substation.
The ANC®
Perimeter System

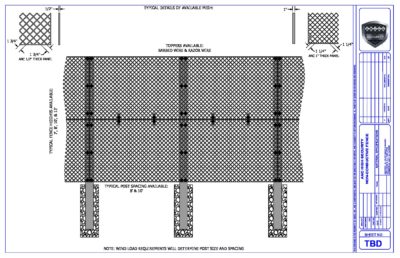

The ANC® Composite Security Fence System
The ANC® Composite Fence System combines non-conductivity and security into an easy to install solution for the energy, air, and marine transportation industries. The system can be installed as new or retrofit construction and steel posts can be used depending upon the recommendation from your grounding engineer. Metal posts and fittings are available.

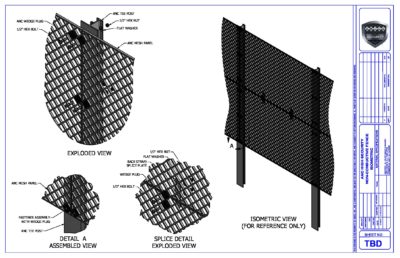

Threaded fasteners bolt through the panels and tighten up securely using AMICO® panel plugs.
All fence components are available non-metallic and non-conductive.
The materials and information contained herein are designed as a guideline for selecting and planning a non-conductive barrier. Your grounding engineer must assess and approve the final specification.
ANC SAFEGUARD™ 1050 shown
ANC SAFEGUARD™ Meshes
- AMICO Security offers a wide range of ANC SAFEGUARD™ Meshes. Mesh patterns range from our traditional diamond pattern to anti-climb and anti-breach square or rectangular patterns. All meshes offer a safe, aesthetically pleasing, non-conductive, radar friendly alternative to traditional security fencing.
| ANC SAFEGUARD™ Mesh | Mesh Pattern | Nominal Opening Dimensions (in) (H by | W) | Percent Open Area | Mesh Thickness (in) | Weight lbs per ft2 |
|---|---|---|---|---|---|---|
| ANC SAFEGUARD™ 1050 | Diamond | 2.25 | 2.25 | 72% | 0.50 | 1.36 |
| ANC SAFEGUARD™ 2100 | Diamond | 1.75 | 1.75 | 68% | 1.00 | 2.36 |
| ANC SAFEGUARD™ 3100 (NEW) | Square | 0.50 | 0.50 | 44% | 1.00 | 4.75 |
| ANC SAFEGUARD™ 4200 (NEW) | Rectangular | 0.50 | 1.50 | 48% | 2.00 | 8.40 |
| ANC SAFEGUARD™ 4225 (NEW) | Rectangular with solid backing | 0.50 | 1.50 | 0% | 2.25 | 10.40 |

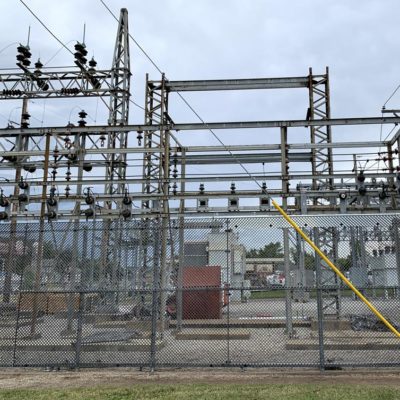

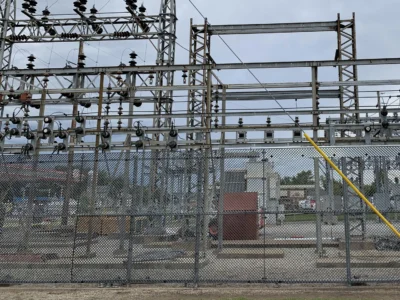

ANC® CHAMELEON™ Hybrid System

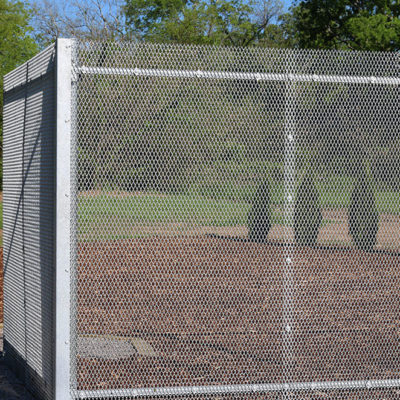

New ANC® Chameleon™ Hybrid System is a combination of ANC Non Conductive components on the outside and Chameleon Retrofit components on the inside.
- 100% non metallic, non-conductive from the outside
- M5 security rating in compliance with the ASTM standards
- Allows you to utilize existing fence posts
- Saves time (up to 40% over other fence systems) and materials
- Allows you to utilize existing grounding systems in place
ANC® Non-Conductive Swing Gates
The ANC® Non Conductive Swing Gate is part of this non-conductive product family. These gates are manufactured with the finest materials and components to exacting specifications. ANC® Non Conductive Swing Gate systems provide a turn-key solution which are simple to install and provide years of trouble free operation.
The ANC® Non Conductive Swing Gate is part of this non-conductive product family. These gates are manufactured with the finest materials and components to exacting specifications. ANC® Non Conductive Swing Gate systems provide a turn-key solution which are simple to install and provide years of trouble free operation.
