Ballistic Panels for ballistic fence, wall and gate systems
AMIGUARD® Ballistic Panels for ballistic fence, wall and gate systems are being manufactured by a world leading manufacturer of bullet resistant fiberglass. The composite laminate consists of fiberglass reinforced thermoset resin designed to defeat a projectile through a process of energy absorption through controlled delamination and energy dissipation.
The fiberglass reinforcement transfers the energy of the bullet across the width of the panel. In addition, the resin is designed to separate into individual plies through a process of controlled delamination to eventually absorb all the energy and stop the bullet within the laminate. Once the plies have begun to delaminate, additional shots become progressively easier to defeat because the energy is more readily absorbed by the laminate.
In contrast to metal barriers, the fiberglass laminate is designed to prevent ricochet of the projectile as well as spalling on the non-threat side of the bullet resistant panel.
Bullet resistant fiberglass panels are used to protect the employees, buildings, and other critical assets for many types of commercial and industrial organizations including: electric utilities, military and government facilities, law enforcement locations, and more.
Through our custom design for bullet-resistant panels, we’ve developed the highest quality and reliable product for defensive architecture.
Unique Benefits of AMIGUARD® Ballistic Panels
- Lighter Weight Than Steel
- Easy To Install With Standard Tools
- Effective Delay Against Forced Entry
- Low Wicking – No Build-Up Of Mold
- Non-Toxic Materials
- 1-Hour Fire Rating (ASTM E119-00)
- Available In Sizes Up To 5’ x 10’
- Available In The Full Range Of UL 752
- Standard Sizes Stocked for Quicker Lead Times
Bullet resistant fiberglass looks like
High-quality materials, skilled craftsmanship and the best manufacturing processes are utilized in the fabrication of each and every AMIGUARD® Ballistic Panel. Continuous product testing ensures that our panels meet the highest criteria of ballistic resistive integrity.
The first element of manufacturing quality bullet-resistant panels is using only reliable and long-lasting raw materials. One reason that the AMICO Security product line has become the preferred bullet resistant fiberglass panel is our commitment to not use starch-oil fiberglass, which is organic and tends to break down in time.
AMICO Security’s bullet-resistant panels are manufactured by combining woven-roving fiberglass with resin, precision-assembled and cured in a press with heat and pressure while maintaining quality and consistency. With our unique capabilities including hydraulic presses, water jet cutting, industrial sanders and testing facilities, AMIGUARD® Ballistic Panel are offered in a variety of standard size sheets ranging from 3’, 4’ & 5’ widths by 8’, 9’ & 10’ lengths of any combination. We also offer custom cutting to fit your unique design with the ability to cut to any 2-dimensional size, pre-drill holes, bevel cut, etc. Our intensive Quality Assurance Program in conjunction with our ISO 9001:2015 registration will ensure every panel we manufacture meets and/or exceeds our customers’ requirements.

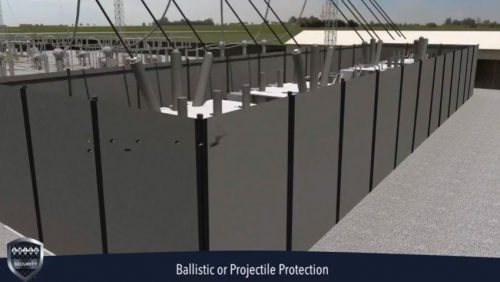

AMIGUARD® Perimeter System
The AMIGUARD® Ballistic Panels are fully compatible with the AMIGUARD® Perimeter System, a patented “unitized” system which incorporates innovative components. Tied together this creates a total curtain wall perimeter barrier.
AMIGUARD’s unique approach incorporates innovative solutions to solve common high security concerns including aesthetics, a seamless design, and ease of installation. The AMICO Security system allows you to incorporate various types of infill panels, making it the most versatile high security option on the market. AMIGUARD® is available in both galvanized and powder coated finishes, with up to a 10-year limited warranty.
UL 752 Protection Levels
